Original SwinSID project: http://www.swinkels.tvtom.pl/swinsid/

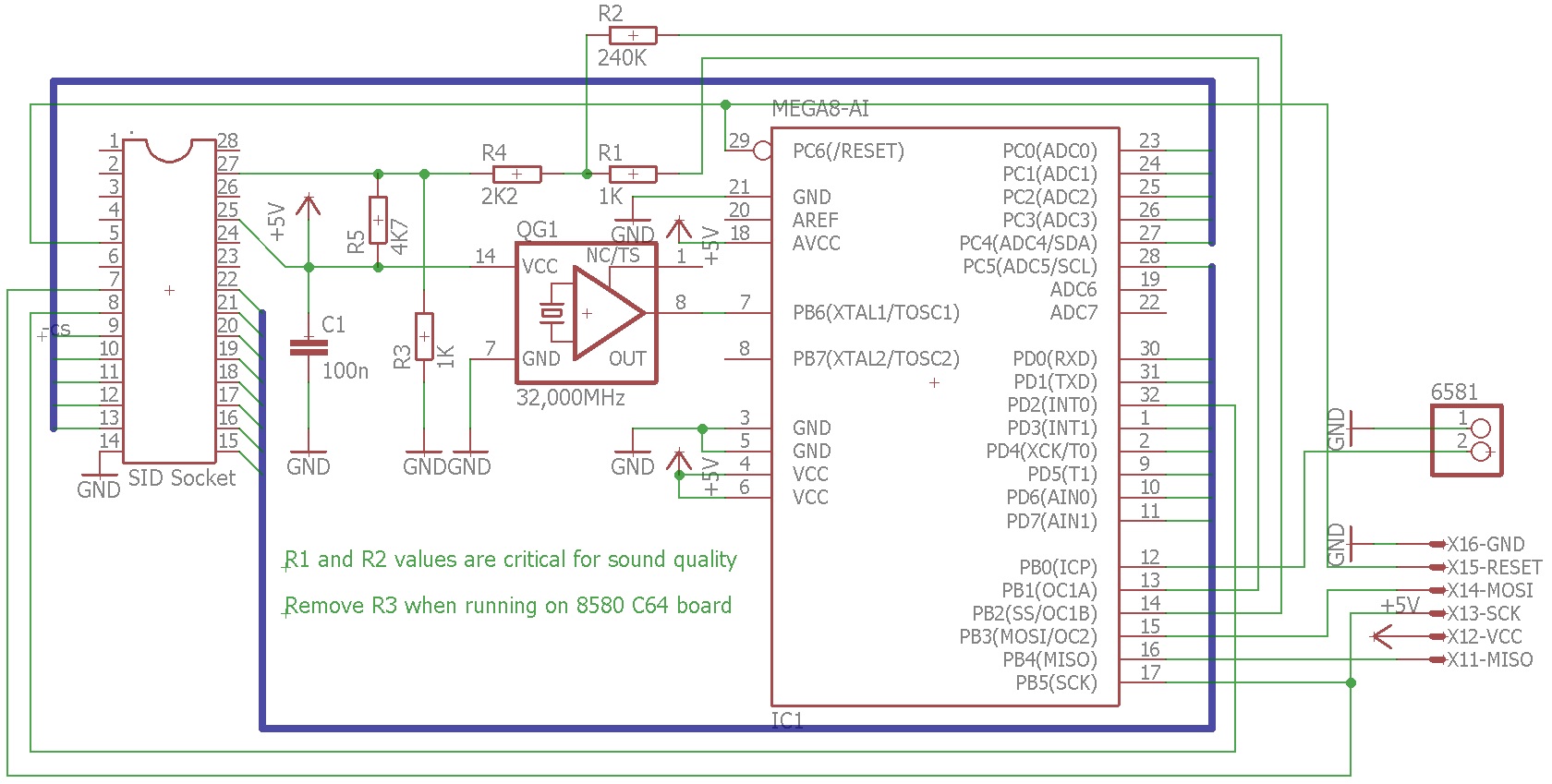

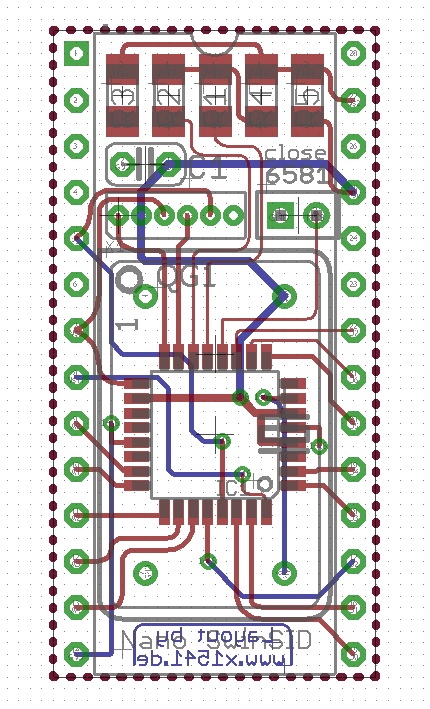

Eagle BRD and SCH files: swinsid88_smd_1_1-top.brd swinsid88_smd_1_1-top.sch
Hex file: SwinSID88_20120524.hex
Fusebits: High: 0xDF Low: 0xE0
